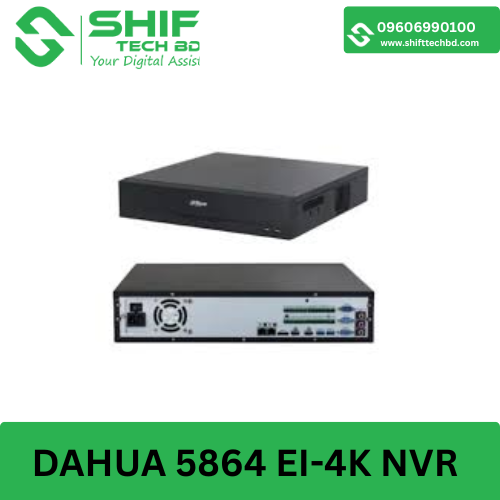

Dahua NVR5864-EI 4K NVR Price in Bangladesh

The Dahua NVR5864-EI 4K NVR is a high-performance network video recorder designed to support large-scale surveillance systems. With advanced video analytics, ultra-high-resolution support, and extensive compatibility with ONVIF cameras, it ensures secure and smooth operation for commercial and industrial environments. It supports up to 64 IP channels, offering intelligent functions like face recognition, people counting, and perimeter protection. The NVR is also optimized for bandwidth efficiency with smart H.265+ video compression. With support for multiple SATA HDDs, USB ports, alarm interfaces, and more, this NVR is a powerful tool for centralized video management in enterprises, banks, factories, and sensitive installations.

Specification

Two-way Talk

The device features a two-way audio communication interface, allowing security personnel to speak and listen through connected cameras. With 1 audio input and 1 audio output, the system enhances interactivity for real-time communication in monitored zones. This feature is ideal for situations like access control, remote assistance, or incident deterrence.

PTZ Control

The Dahua NVR5864-EI supports Pan-Tilt-Zoom (PTZ) camera control, offering flexibility for zooming into areas of interest and monitoring large spaces. Users can control PTZ functions remotely through the NVR interface or connected applications. Presets, patrols, and pattern movements are also supported, helping optimize surveillance coverage.

USB Ports of  Dahua NVR5864-EI 4K NVR

Equipped with three USB ports (two USB 2.0 on the rear and one USB 3.0 on the front), the NVR5864-EI makes it easy to export video footage, update firmware, or connect external peripherals. This enhances operational efficiency for IT managers and system administrators.

Video Compression

To reduce storage usage without compromising video quality, the NVR uses advanced video compression formats like Smart H.265+, H.265, Smart H.264+, and H.264. Smart codecs intelligently reduce redundant data, helping save up to 90% storage while maintaining crisp 4K visuals, making it highly efficient.

Analog Video Input

The Dahua NVR supports up to 64 IP camera channels but does not include built-in analog inputs. However, it can be integrated with hybrid systems via encoders, allowing analog cameras to be connected if needed. This makes it suitable for upgrading legacy systems to IP-based networks.

Video Output

The NVR offers simultaneous HDMI and VGA output, allowing multi-screen display of up to 4K UHD resolution. HDMI delivers the best clarity for critical monitoring zones, while VGA offers compatibility with older displays or dual-monitor setups for control rooms.

Hard Disk

Up to 8 internal SATA hard disk drives can be installed for massive local storage. RAID levels 0/1/5/6/10 are supported for data redundancy and reliability. Hot-swap functionality ensures maintenance or upgrades without stopping the system.

Mobile Monitoring

The Dahua NVR5864-EI supports remote monitoring via the Dahua DMSS mobile app, available for both Android and iOS. Users can view live feeds, playback footage, and receive real-time alerts on their smartphones, enabling off-site security management anytime, anywhere.

Alarm Interface

The Dahua NVR5864-EI 4K NVR features robust alarm interface capabilities for real-time event response. It offers up to 16 alarm inputs and 6 alarm outputs that allow the NVR to integrate seamlessly with external alarm devices like sensors, sirens, or motion detectors. This function enables the system to trigger alerts or actions such as email notifications, snapshot captures, or device relays when predefined security rules are breached.

Power Consumption

The device runs on AC100–240V, 50/60Hz, with a maximum power consumption of 36W (without HDDs). Energy-efficient design ensures 24/7 performance with minimal operational costs. Power-saving features like smart fan control are built-in for better thermal management.

Compatibility

This NVR is ONVIF compliant, making it compatible with a wide range of IP camera brands. It supports third-party integration for flexibility in designing surveillance systems. Dahua’s proprietary protocols ensure smooth communication with its own ecosystem of smart devices.

P2P Cloud Service

The integrated P2P (Peer-to-Peer) cloud service allows for secure and instant remote access. With simple QR code scanning, users can view their system from anywhere without complex port forwarding. Encryption protocols ensure user privacy and data security.

Dimensions

The device measures approximately 2U rack-mount size (440mm × 454.9mm × 95mm), making it suitable for professional server cabinets. The robust chassis provides excellent heat dissipation and durability, ideal for 24/7 operations.

Network Capacity

Dual network mode ensures optimal streaming and recording load distribution, enhancing overall system stability and speed. The Dahua NVR5864-EI 4K NVR features 4 RJ-45 Ethernet ports with 10/100/1000 Mbps support for flexible LAN/WAN deployment.

Playback

Supports synchronous playback of up to 16 channels at once. Smart search and playback functions allow users to easily locate events by time, date, or object movement. Frame-by-frame viewing helps with forensic-level investigation and detailed analysis.

Pricing and Availability in Bangladesh

It is currently available at Shift Tech BD. Pricing may vary depending on HDD configuration and installation service. To check the latest price or to place an order, visit ShiftTechBD or call +8801317-492019 for more details and support.

Pros

• Supports up to 64 IP channels
• 4K UHD HDMI output
• Smart H.265+ compression
• Two-way audio support
• Mobile remote access
• Multi-channel playback
• PTZ camera support
• RAID storage options

Cons

• No built-in PoE
• No analog camera input
• Large physical footprint

Conclusion

The Dahua 4K NVR is a high-end, feature-packed solution ideal for large-scale surveillance applications. Its support for up to 64 IP channels, advanced AI features, and 4K resolution make it a future-proof investment for enterprises and critical infrastructure. For those looking for reliability, scalability, and smart security features, this model delivers performance and peace of mind.

FAQs About the Dahua NVR5864-EI 4K NVR

Question: What is the maximum storage capacity of the Dahua NVR5864-EI?
Answer: The device supports up to 8 SATA HDDs with a total capacity of 160TB (20TB per HDD), ideal for long-term storage.

Question: Can I connect analog cameras to this NVR?
Answer: Direct analog input is not supported, but analog cameras can be integrated using an encoder or hybrid setup.

Question: Does it support mobile viewing?
Answer: Yes, mobile monitoring is supported via the Dahua DMSS app for both Android and iOS platforms.

Question: How many cameras can it support?
Answer: This NVR supports up to 64 IP cameras simultaneously, depending on bandwidth and resolution.

Question: Is PTZ camera control available?
Answer: Yes, it fully supports PTZ control including presets, patrols, and zoom functions.

Question: Does this model have built-in PoE ports?
Answer: No, it does not have PoE ports. External PoE switches are required for camera connectivity.

Question: Can I use RAID for hard disk redundancy?
Answer: Yes, it supports RAID 0/1/5/6/10 to ensure data protection and fault tolerance.

Question: What compression technology does it use?
Answer: It uses advanced Smart H.265+ and H.264 for efficient video storage and bandwidth management.

Question: Does it support AI features?
Answer: Yes, features like face detection, people counting, and perimeter protection are supported.
